Features
- CCS, BV, BKI, RINA, RS Class Certificate
- IMO Emission Certificate
- Stamford, Leroy-Somer, Marathon marine alternator as optional
- Heat exchanger cooled and keel cooled as optional

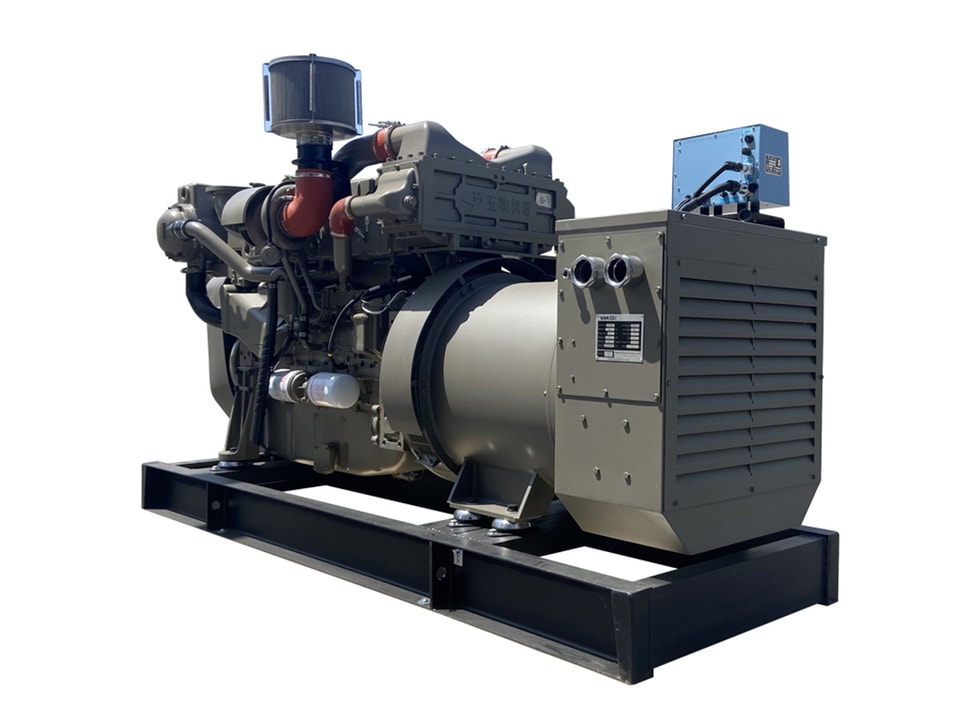

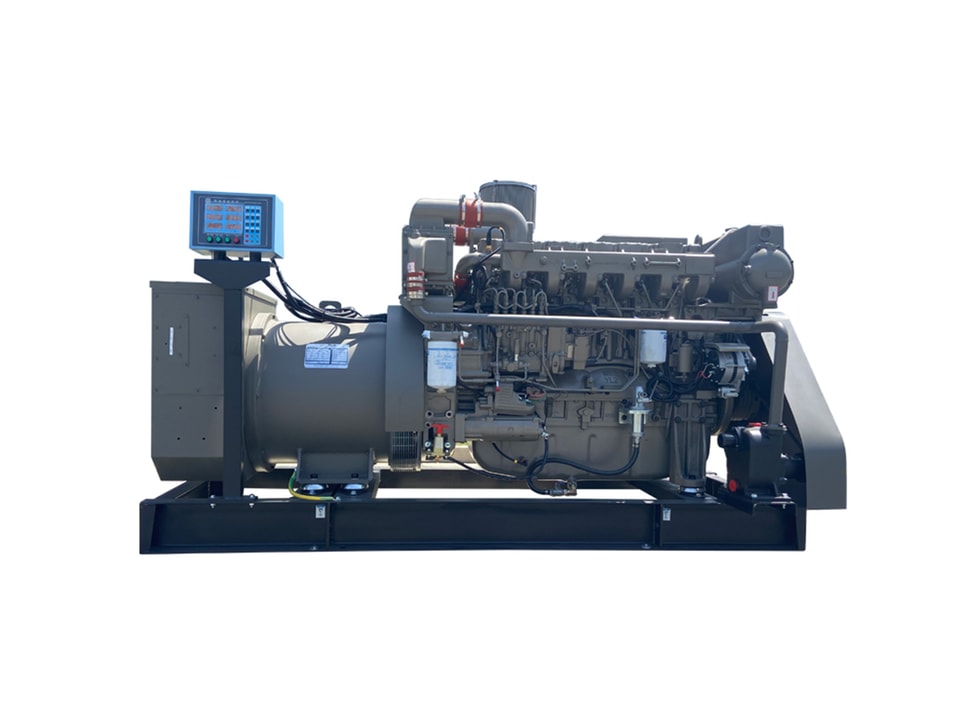

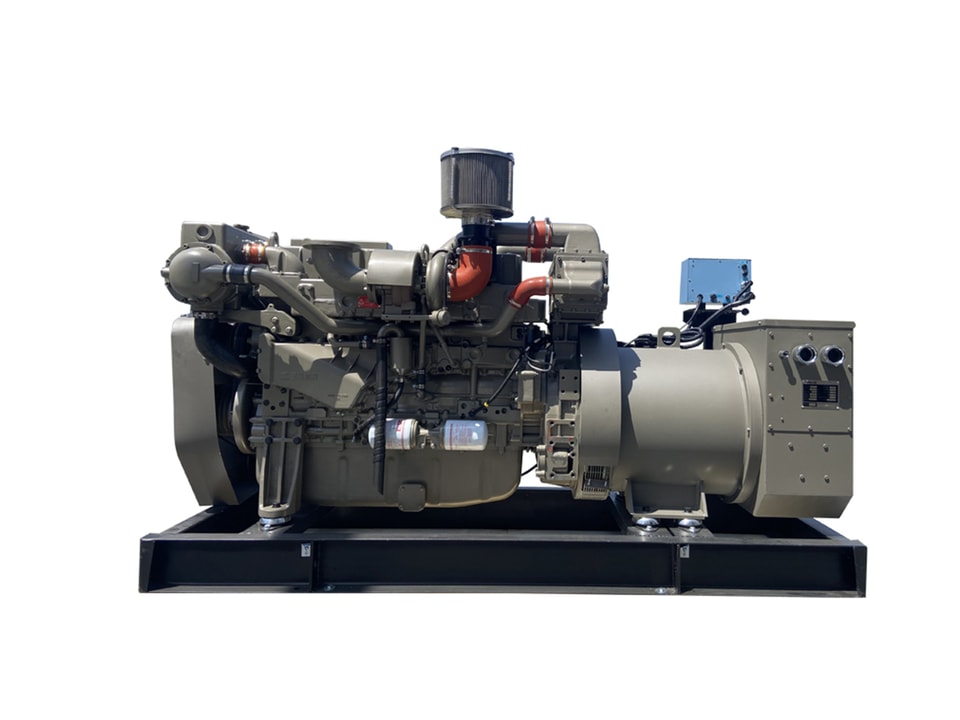

Marine Generator Set Technical Data
| Genset Model | kW | kVA | Frequency(Hz) | Engine Model | Engine Output(kW/r/min) | Dimension(mm) | Weight(kg) |
|---|---|---|---|---|---|---|---|
| CCFJ30J-WTP | 30 | 37.5 | 50 | YC4A55Z-C22 | 40/1500 | 1557×850×989 | 850 |
| CCFJ40J-WTP | 40 | 50 | 50 | YC4A70Z-C22 | 50/1500 | 1557×850×989 | 850 |
| CCFJ50J-WTP | 50 | 62.5 | 50 | YC4A85Z-C22 | 63/1500 | 1672×850×989 | 920 |
| CCFJ64J-WTP | 64 | 80 | 50 | YC4A110L-C22 | 80/1500 | 1749×850×989 | 995 |
| CCFJ75J-WTP | 75 | 94 | 50 | YC4A120L-C22 | 90/1500 | 1750×865×1044 | 1036 |
| CCFJ90J-WTP | 90 | 112 | 50 | YC4A145L-C22 | 106/1500 | 1848×865×1044 | 1075 |
| CCFJ100J-WTP | 100 | 125 | 50 | YC4A165L-C22 | 120/1500 | 1848×865×1044 | 1103 |
| CCFJ120J-WTP | 120 | 150 | 50 | YC4A08200L-C22 | 145/1500 | 2365×960×1420 | 1450 |
| CCFJ150J-WTP | 150 | 187 | 50 | YC4A08240L-C22 | 176/1500 | 2700×1100×1700 | 2230 |
| CCFJ180J-WTP | 180 | 225 | 50 | YC6MK300L-C25 | 219/1500 | 2750×1100×1700 | 2550 |
| CCFJ200J-WTP | 200 | 250 | 50 | YC6MK330L-C22 | 240/1500 | 2750×1100×1700 | 2550 |
| CCFJ250J-WTP | 250 | 312 | 50 | YC6MJ410L-C24 | 300/1500 | 2750×1100×1700 | 2550 |
| CCFJ260J-WTP | 260 | 325 | 50 | YC6K420L-C20 | 309/1500 | 2650×1050×1500 | 2700 |
| CCFJ280J-WTP | 280 | 350 | 50 | YC6T450L-C29 | 330/1500 | 3000×1100×2160 | 3290 |
| CCFJ300J-WTP | 300 | 375 | 50 | YC6K450L-C20 | 331/1500 | 3000×1100×2160 | 3290 |
| CCFJ300J-WTP | 300 | 375 | 50 | YC6T490L-C29 | 360/1500 | 3100×1100×2160 | 3420 |
| CCFJ320J-WTP | 320 | 400 | 50 | YC6K490L-C20 | 360/1500 | 3000×1100×2160 | 3290 |
| CCFJ350J-WTP | 350 | 437 | 50 | YC6TD600L-C20 | 441/1500 | 3300×1050×1500 | 3750 |
| CCFJ400J-WTP | 400 | 500 | 50 | YC6TD655L-C20 | 480/1500 | 3300×1050×1500 | 3940 |
| CCFJ400J-WTP | 400 | 500 | 50 | YC6TF655L-C22 | 480/1000 | 3300×1050×1500 | 3940 |
| CCFJ500J-WTP | 500 | 625 | 50 | YC6TF815L-C24 | 600/1500 | 4500×1400×2100 | 7100 |
| CCFJ600J-WTP | 600 | 750 | 50 | YC6TF980L-C22 | 720/1500 | 4500×1400×2100 | 7300 |
| CCFJ600J-WTP | 600 | 750 | 50 | YC6CL960L-C22 | 706/1000 | Please contact the factory | |
| CCFJ630J-WTP | 630 | 787 | 50 | YC6CL1035L-C22 | 760/1000 | Please contact the factory | |
| CCFJ700J-WTP | 700 | 875 | 50 | YC6CL1135L-C22 | 835/1000 | Please contact the factory | |
| CCFJ750J-WTP | 750 | 937 | 50 | YC6CL1200L-C22 | 882/1000 | Please contact the factory | |
| CCFJ800J-WTP | 800 | 1000 | 50 | YC6CA1300L-C20 | 956/1000 | Please contact the factory | |
| CCFJ900J-WTP | 900 | 1125 | 50 | YC6CA1400L-C22 | 1029/1000 | Please contact the factory | |
| CCFJ1000J-WTP | 1000 | 1250 | 50 | YC8CL1630L-C20 | 1200/1000 | Please contact the factory | |
| CCFJ1200J-WTP | 1200 | 1500 | 50 | YC12VC1850L-C22 | 1360/1500 | Please contact the factory | |
| CCFJ1300J-WTP | 1300 | 1625 | 50 | YC8CAX2000L-C22 | 1470/1000 | Please contact the factory | |
| CCFJ1300J-WTP | 1300 | 1625 | 50 | YC12VC2000L-C22 | 1470/1500 | Please contact the factory | |
| CCFJ1400J-WTP | 1400 | 1750 | 50 | YC12VC2120L-C22 | 1560/1500 | Please contact the factory | |
| CCFJ1600J-WTP | 1600 | 2000 | 50 | YC16VC2400L-C22 | 1764/1500 | 5160×1644×2218 | 13500 |
| CCFJ1700J-WTP | 1700 | 2125 | 50 | YC16VC2610L-C20 | 1920/1500 | 5945×1644×2218 | 15800 |
| CCFJ2000J-WTP | 2000 | 2500 | 50 | YC16VC3000L-C22 | 2206/1500 | 5945×1644×2218 | 16300 |
| CCFJ350J-WTP | 350 | 437 | 60 | YC6K560L-C20 | 412/1800 | 3085×1150×1850 | 3500 |
| CCFJ400J-WTP | 400 | 500 | 60 | YC6TD655L-C23 | 480/1800 | 3100×1250×1960 | 3700 |
Note: The external dimensions and weight may vary depending on the configuration.
Marine Emergency Generator Set Technical Data
| Genset Model | kW | kVA | Frequency(Hz) | Engine Model | Engine Output(kW/r/min) | Dimension(mm) | Weight(kg) |
|---|---|---|---|---|---|---|---|
| CCFJ24Y-WTP | 24 | 30 | 50 | YC4D55-C21 | 40/1500 | 1860×800×1240 | 720 |
| CCFJ30Y-WTP | 30 | 37.5 | 50 | YC4D55-C21 | 40/1500 | 1860×800×1240 | 720 |
| CCFJ30Y-WTP | 30 | 37.5 | 50 | YC4D70Z-C21 | 50/1500 | 1960×800×1240 | 800 |
| CCFJ40Y-WTP | 40 | 50 | 50 | YC4D70Z-C21 | 50/1500 | 1960×800×1240 | 800 |
| CCFJ50Y-WTP | 50 | 62.5 | 50 | YC6B85-C21 | 63/1500 | 2140×840×1280 | 1200 |
| CCFJ64Y-WTP | 64 | 80 | 50 | YC6B120Z-C21 | 90/1500 | 2200×840×1280 | 1300 |
| CCFJ75Y-WTP | 75 | 94 | 50 | YC6B120Z-C21 | 90/1500 | 2200×840×1280 | 1300 |
| CCFJ90Y-WTP | 90 | 112 | 50 | YC6B155L-C21 | 114/1500 | 2440×935×1400 | 1400 |
| CCFJ100Y-WTP | 100 | 125 | 50 | YC6A170L-C21 | 125/1500 | 2480×956×1450 | 1400 |
| CCFJ120Y-WTP | 120 | 150 | 50 | YC6A200L-C21 | 145/1500 | 2540×956×1450 | 1450 |
| CCFJ150Y-WTP | 150 | 187 | 50 | YC6MK245L-C21 | 180/1500 | 2950×1125×1640 | 2050 |
| CCFJ200Y-WTP | 200 | 250 | 50 | YC6MK330L-C21 | 240/1500 | 3020×1125×1640 | 2180 |
| CCFJ280Y-WTP | 280 | 350 | 50 | YC6T450L-C21 | 330/1500 | 3550×1240×1840 | 3280 |
| CCFJ300Y-WTP | 300 | 375 | 50 | YC6T490L-C21 | 360/1500 | 3620×1240×1840 | 3460 |
Note: The external dimensions and weight may vary depending on the configuration.
