Features
- CCS, BV, BKI, RINA, RS Class Certificate
- IMO Emission Certificate
- Stamford, Leroy-Somer, Marathon marine alternator as optional
- Heat exchanger cooled and keel cooled as optional

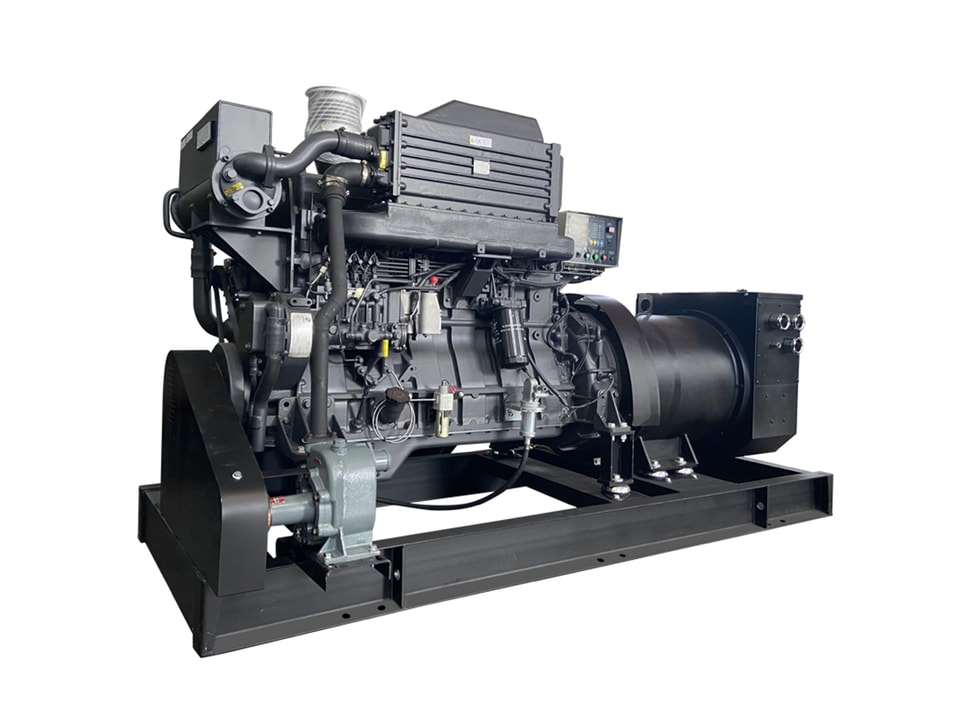

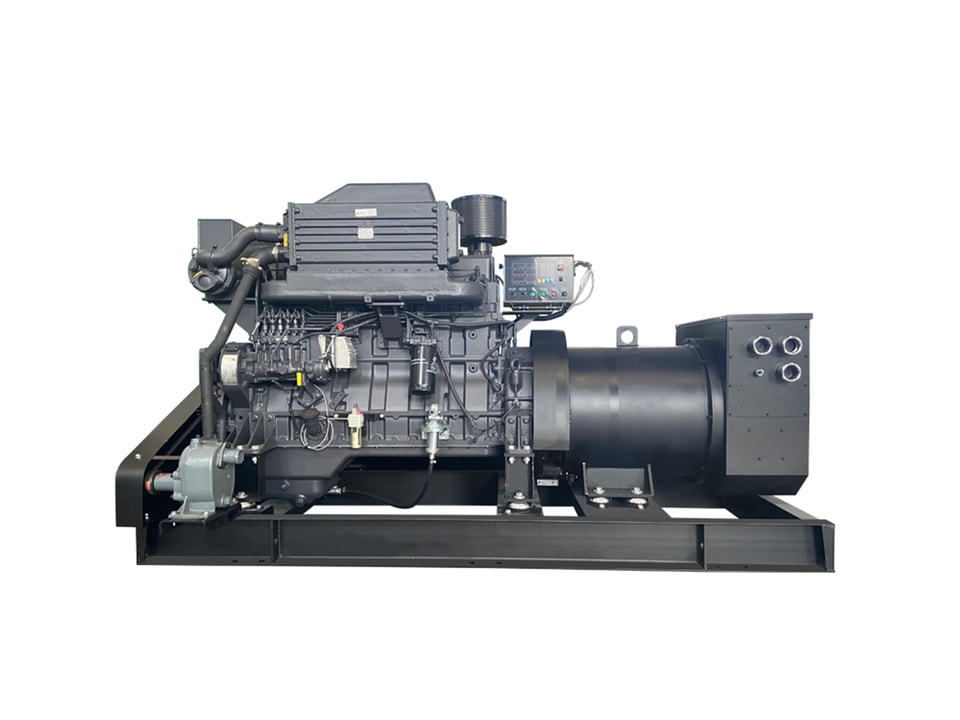

Marine Generator Set Technical Data
| Model | Rated Power(kW) | Rated Power(kVA) | Frequency(Hz) | Engine | Alternator | Dimension(mm) | Weight(kg) |
|---|---|---|---|---|---|---|---|
| CCFJ50J-W | 50 | 62.5 | 50 | SC4H95CF2 60kW | MP-H-50-4 50kW | 1560×860×1150 | 900 |
| CCFJ64J-W | 64 | 80 | 50 | SC4H115CF2 75kW | MP-H-64-4 64kW | 1650×860×1180 | 980 |
| CCFJ75J-W | 75 | 93.75 | 50 | SC4H140CF2 90kW | MP-H-75-4 75kW | 1650×860×1180 | 1020 |
| CCFJ90J-W | 90 | 112.5 | 50 | SC4H160CF2 102kW | MP-H-90-4 90kW | 1780×860×1240 | 1120 |
| CCFJ100J-W | 100 | 125 | 50 | SC4H180CF2 116kW | MP-H-100-4 100kW | 1820×860×1240 | 1160 |
| CCFJ108J-W | 108 | 135 | 50 | SC7H185CF2 120kW | MP-H-120-4 120kW | 2180×860×1380 | 1450 |
| CCFJ120J-W | 120 | 150 | 50 | SC7H230CF2 149kW | MP-H-120-4 120kW | 2180×860×1380 | 1450 |
| CCFJ140J-W | 140 | 175 | 50 | G128ZCAf1 162kW | MP-H-150-4 150kW | 2500×1000×1630 | 2240 |
| CCFJ140J-W | 140 | 175 | 50 | SC7H250CF2 163kW | MP-H-150-4 150kW | 2200×860×1380 | 1560 |
| CCFJ150J-W | 150 | 187.5 | 50 | SC9D245.15CF1 177kW | MP-H-150-4 150kW | 2200×960×1440 | 1750 |
| CCFJ160J-W | 160 | 200 | 50 | G128ZLCaf 180kW | MP-H-180-4 180kW | 2580×1000×1630 | 2350 |
| CCFJ180J-W | 180 | 225 | 50 | G128ZLCaf1 198.5kW | MP-H-180-4 180kW | 2580×1000×1630 | 2350 |
| CCFJ200J-W | 200 | 250 | 50 | SC9D310.15CF1 223kW | MP-H-200-4 200kW | 2280×960×1440 | 1900 |
| CCFJ200J-W | 200 | 250 | 50 | G128ZLCaf2 240kW | MP-H-200-4 200kW | 2580×1000×1630 | 2380 |
| CCFJ250J-W | 250 | 312.5 | 50 | G128ZLCaf3 276kW | MP-H-250-4 250kW | 2640×1000×1630 | 2560 |
| CCFJ280J-W | 280 | 350 | 50 | SC15G500CF2 320kW | MP-H-280-4 280kW | 2740×1000×1630 | 2650 |
| CCFJ350J-W | 350 | 437.5 | 50 | SC25K570.15CF1 412kW | MX-H-350-4 350kW | 3300×1080×1860 | 4350 |
| CCFJ400J-W | 400 | 500 | 50 | SC25K650.10CF1 471kW | MX-H-400-4 400kW | 3300×1080×1860 | 4380 |
| CCFJ440J-W | 440 | 550 | 50 | SC33W680CF2 490kW | MX-H-450-4 450kW | 3600×1280×2150 | 5160 |
| CCFJ500J-W | 500 | 625 | 50 | SC33W760CF2 550kW | MX-H-500-4 500kW | 3760×1280×2150 | 5350 |
| CCFJ580J-W | 580 | 725 | 50 | SC33W900CF2 647kW | MX-H-630-4 630kW | 3850×1280×2150 | 5660 |
| CCFJ600J-W | 600 | 750 | 50 | SC38W930.10CF1 668kW | MX-H-630-4 630kW | 3890×1280×2150 | 6050 |
Note: The external dimensions and weight may vary depending on the configuration.
Marine Emergency Generator Set Technical Data
| Model | Rated Power(kW) | Rated Power(kVA) | Frequency(Hz) | Engine | Alternator | Dimension(mm) | Weight(kg) |
|---|---|---|---|---|---|---|---|
| CCFJ50Y-W | 50 | 62.5 | 50 | SC4H100CD 63kW | MP-H-50-4 50kW | 1820×750/900×1240 | 900 |
| CCFJ64Y-W | 64 | 80 | 50 | SC4H130CD 84kW | MP-H-64-4 64kW | 1980×800/950×1240 | 950 |
| CCFJ75Y-W | 75 | 93.75 | 50 | SC4H130CD 84kW | MP-H-75-4 75kW | 1980×800/950×1240 | 980 |
| CCFJ80Y-W | 80 | 100 | 50 | SC4H150CD 95kW | MP-H-90-4 90kW | 2060×800/950×1240 | 1050 |
| CCFJ100Y-W | 100 | 125 | 50 | SC7H195CD 125kW | MP-H-100-4 100kW | 2340×860/1000×1380 | 1650 |
| CCFJ120Y-W | 120 | 150 | 50 | SC7H230CD 150kW | MP-H-120-4 120kW | 2460×860/1000×1380 | 1800 |
| CCFJ150Y-W | 150 | 187.5 | 50 | G128ZLD 180kW | MP-H-150-4 150kW | 2900×1260×1780 | 2560 |
| CCFJ200Y-W | 200 | 250 | 50 | G128ZLD11 275kW | MP-H-200-4 200kW | 2980×1260×1780 | 2600 |
Note: In dimensions containing “/”, the width after the slash includes the vertical cabinet. External dimensions and weight may vary depending on the configuration.
