Features
- KR, RINA Class Certificate
- IMO Emission Certificate
- Stamford, Leroy-Somer, Marathon marine alternator as optional
- Heat exchanger cooled, keel cooled and water cooled by radiator as optional

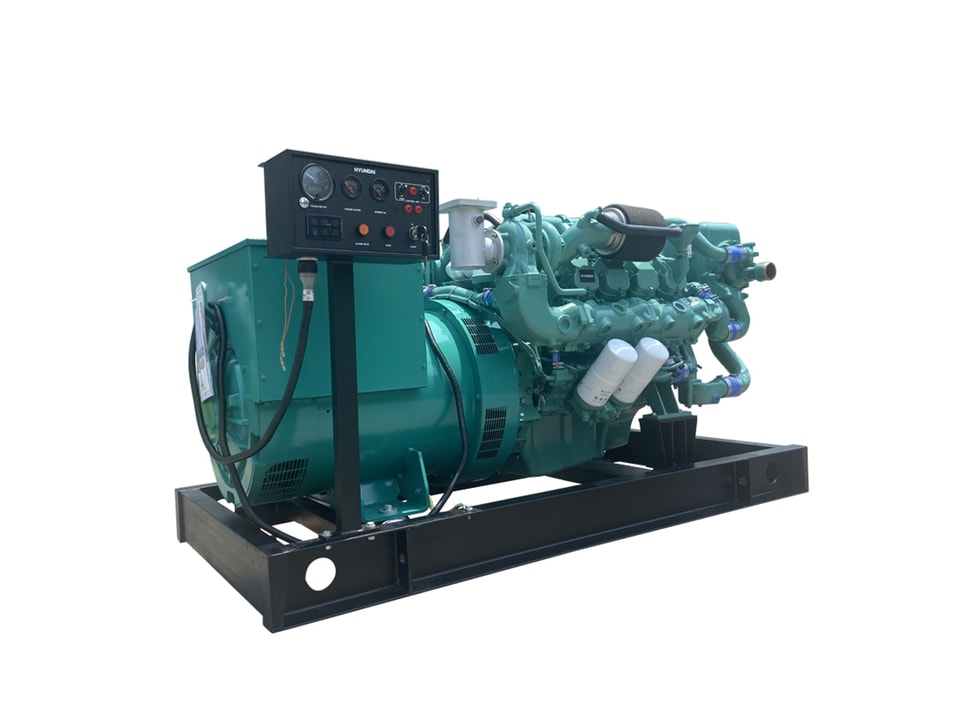

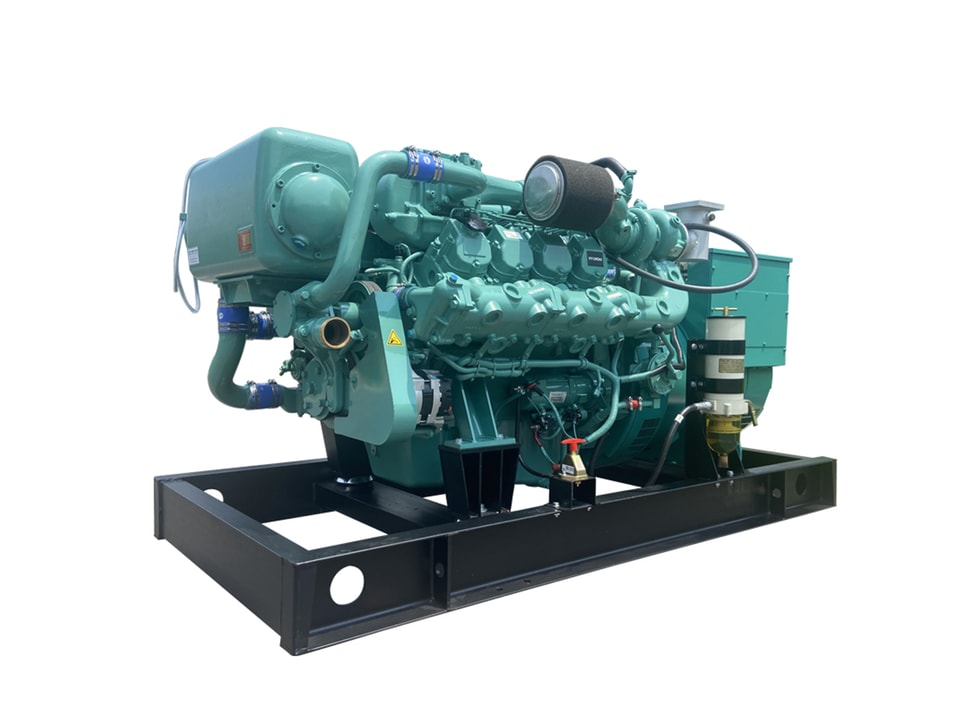

Marine Generator Set Technical Data
| Genset Model | kW | kVA | Frequency(Hz) | Engine Model | Engine Output(kW/r/min) | Cylinders | Dimension(mm) | Weight(kg) |
|---|---|---|---|---|---|---|---|---|
| CCFJ64J-WTP | 64 | 80 | 50 | AD136 | 77/1500 | 6 | 1981×770×1125 | 1220 |
| CCFJ90J-WTP | 90 | 112.5 | 50 | AD136T | 107/1500 | 6 | 1992×770×1125 | 1270 |
| CCFJ100J-WTP | 100 | 125 | 50 | AD136TI | 115/1500 | 6 | 2096×825×1125 | 1330 |
| CCFJ128J-WTP | 128 | 160 | 50 | AD086TI | 151/1500 | 6 | 2146×825×1162 | 1490 |
| CCFJ134J-WTP | 134 | 168 | 50 | AD196T | 154/1500 | 6 | 2152×854×1272 | 1800 |
| CCFJ150J-WTP | 150 | 187.5 | 50 | AD196TI | 173/1500 | 6 | 2152×854×1272 | 1800 |
| CCFJ180J-WTF | 180 | 225 | 50 | AD126T | 206/1500 | 6 | 2256×854×1272 | 1950 |
| CCFJ225J-WTF | 225 | 281 | 50 | 4AD126T | 257/1500 | 6 | Please contact the factory | |
| CCFJ250J-WTP | 250 | 312.5 | 50 | AD158T | 302/1500 | 8 | 2209×1222×1274 | 2440 |
| CCFJ320J-WTP | 320 | 400 | 50 | AD180TI | 357/1500 | 10 | 2532×1222×1360 | 3000 |
| CCFJ400J-WTP | 400 | 500 | 50 | AD222TI | 446/1500 | 12 | 2704×1222×1400 | 3180 |
| CCFJ280J-WTP | 280 | 350 | 50 | 4AD158TI | 325/1500 | 8 | 2467×1237×1317 | 2860 |
| CCFJ440J-WTP | 440 | 550 | 50 | 4AD222TI | 491/1500 | 12 | 2858×1243×1436 | 3600 |
| CCFJ95J-WTP | 95 | 119 | 60 | AD066TI | 110/1800 | 6 | 1841×800×1090 | 1050 |
| CCFJ84J-WTP | 84 | 105 | 60 | AD136 | 93/1800 | 6 | 1981×770×1125 | 1230 |
| CCFJ110J-WTP | 110 | 137.5 | 60 | AD136T | 125/1800 | 6 | 2096×770×1125 | 1320 |
| CCFJ120J-WTP | 120 | 150 | 60 | AD136TI | 138/1800 | 6 | 2096×825×1125 | 1400 |
| CCFJ150J-WTP | 150 | 187.5 | 60 | AD086TI | 186/1800 | 6 | 2146×825×1162 | 1480 |
| CCFJ170J-WTP | 170 | 212.5 | 60 | AD196T | 188/1800 | 6 | 2197×854×1272 | 1760 |
| CCFJ180J-WTP | 180 | 225 | 60 | AD196TI | 199/1800 | 6 | 2197×854×1272 | 1760 |
| CCFJ216J-WTP | 216 | 270 | 60 | AD126TI | 247/1800 | 6 | 2256×854×1272 | 1980 |
| CCFJ264J-WTP | 264 | 330 | 60 | 4AD126T | 302/1800 | 6 | Please contact the factory | |
| CCFJ320J-WTP | 320 | 400 | 60 | AD158TI | 353/1800 | 8 | 2299×1222×1274 | 2600 |
| CCFJ400J-WTP | 400 | 500 | 60 | AD180TI | 441/1800 | 10 | 2532×1222×1369 | 3060 |
| CCFJ480J-WTP | 480 | 600 | 60 | AD222TI | 530/1800 | 12 | 2690×1222×1399 | 3500 |
| CCFJ335J-WTP | 335 | 418 | 60 | 4AD158TI | 390/1800 | 8 | 2467×1237×1317 | 2950 |
| CCFJ515J-WTP | 515 | 644 | 60 | 4AD222TI | 588/1800 | 12 | 2858×1243×1436 | 3780 |
Note: The external dimensions and weight may vary depending on the configuration.
Marine Main Propulsion Technical Data
| Engine Model | Output Power(kW) | Output Power(ps) | rpm | Dimension(mm) | Weight(kg) |
|---|---|---|---|---|---|
| L136 | 118 | 160 | 2200 | 1266×875×937 | 743 |
| L136T | 147 | 200 | 2200 | 1351×893×937 | 748 |
| L136TI | 169 | 230 | 2200 | 1364×911×937 | 773 |
| L086TI | 210 | 285 | 2100 | 1364×919×965 | 790 |
| MD196T | 206 | 280 | 2000 | 1397×931×1077 | 975 |
| MD196TI | 235 | 320 | 2000 | 1397×933×1077 | 1009 |
| L126TI | 265 | 360 | 2000 | 1414×933×1077 | 1060 |
| 4L126TI | 331 | 450 | 2000 | Please contact the factory | |
| V158TI | 353 | 480 | 1800 | 1657×1226×1397 | 1350 |
| V180TI | 441 | 600 | 1800 | 1815×1227×1576 | 1550 |
| V222TI | 530 | 720 | 1800 | 1973×1233×1606 | 1750 |
| 4V158TI | 390 | 530 | 1800 | 1558×1237×1334 | 1540 |
| 4V222TI | 588 | 800 | 1800 | 1874×1243×1548 | 1920 |
Note: The external dimensions and weight may vary depending on the configuration.
