CCEC CUMMINS
Features
- CCS, BV, BKI Class Certificate
- IMO Emission Certificate
- Heat exchanger cooled, and keel cooled as optional
- Advance/fada marine gearbox as optional

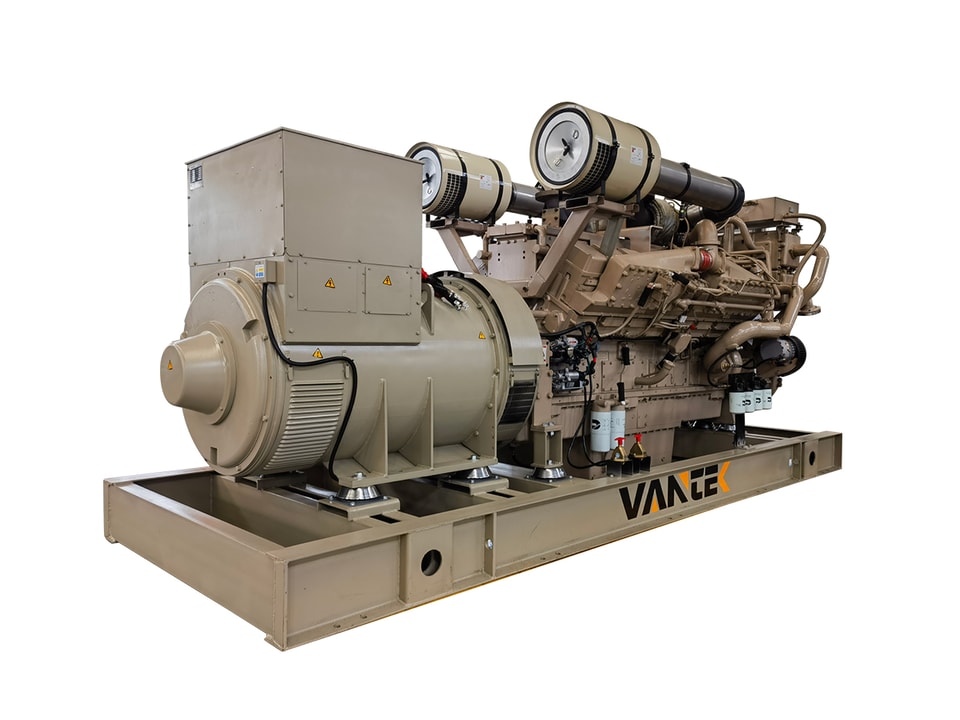

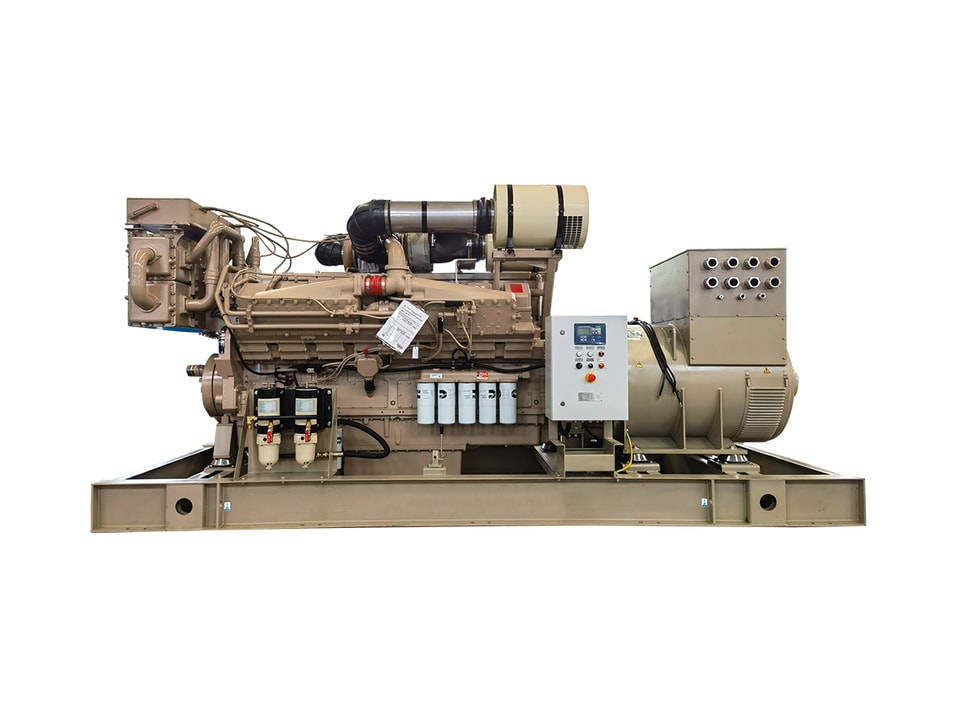

Marine Generator Set Technical Data
| Genset Model | kW | kVA | Frequency(Hz) | Engine Model | Engine Output(kW/r/min) | Cylinders | Dimension(mm) | Weight(kg) |
|---|---|---|---|---|---|---|---|---|
| CCFJ40J-WTP | 40 | 50 | 50 | 4BTA3.9-GM47 | 47/1500 | 4 | 1740×900×1280 | 780 |
| CCFJ55J-WTP | 55 | 69 | 50 | 4BTA3.9-GM65 | 65/1500 | 4 | Please contact the factory | |
| CCFJ64J-WTP | 64 | 80 | 50 | 6BT5.9-GM83 | 83/1500 | 6 | 1980×900×1350 | 1000 |
| CCFJ90J-WTP | 90 | 112.5 | 50 | 6BTA5.9-GM100 | 100/1500 | 6 | 2100×900×1350 | 1100 |
| CCFJ100J-WTP | 100 | 125 | 50 | 6BTAA5.9-GM115 | 115/1500 | 6 | Please contact the factory | |
| CCFJ100J-WTP | 100 | 125 | 50 | 6CT8.3-GM115 | 115/1500 | 6 | 2150×900×1350 | 1360 |
| CCFJ140J-WTP | 140 | 175 | 50 | 6CTA8.3-GM155 | 155/1500 | 6 | 2240×900×1350 | 1500 |
| CCFJ160J-WTP | 160 | 200 | 50 | 6LTAA8.9-GM200 | 200/1500 | 6 | Please contact the factory | |
| CCFJ40J-WTP | 40 | 50 | 50 | B3.9CMII64G | 47/1500 | 4 | 1740×900×1280 | 780 |
| CCFJ50J-WTP | 50 | 62.5 | 50 | B3.9CMII82G | 60/1500 | 4 | 1980×900×1350 | 920 |
| CCFJ70J-WTP | 70 | 87.5 | 50 | B5.9CMII113G | 83/1500 | 6 | 1980×900×1350 | 1020 |
| CCFJ90J-WTP | 90 | 112.5 | 50 | B5.9CMII136G | 100/1500 | 6 | 2100×900×1350 | 1100 |
| CCFJ100J-WTP | 100 | 125 | 50 | B5.9CMII156G | 115/1500 | 6 | 2100×900×1350 | 1360 |
| CCFJ140J-WTP | 140 | 175 | 50 | L8.9CMII211G | 155/1500 | 6 | 2320×900×1350 | 1500 |
| CCFJ180J-WTP | 180 | 225 | 50 | L8.9CMII272G | 200/1500 | 6 | 2380×900×1350 | 1660 |
| CCFJ70J-WTP | 70 | 87.5 | 60 | 6BT5.9-GM100 | 100/1800 | 6 | 2020×900×1350 | 960 |
| CCFJ100J-WTP | 100 | 125 | 60 | 6BTA5.9-GM120 | 120/1800 | 6 | 2100×900×1350 | 1100 |
| CCFJ112J-WTP | 112 | 142 | 60 | 6CT8.3-GM129 | 129/1800 | 6 | 2150×900×1350 | 1360 |
| CCFJ150J-WTP | 150 | 187.5 | 60 | 6CTA8.3-GM175 | 175/1800 | 6 | 2200×900×1350 | 1450 |
Marine Main Propulsion Technical Data
| Engine Model | Output Power(kW) | Output Power(hp) | rpm | Engine Dimension(mm) | Weight(kg) |
|---|---|---|---|---|---|
| 6BT5.9-M120 | 90 | 120 | 2200 | 1181×684×1127 | 466 |
| 6BTA5.9-M150 | 110 | 150 | 2200 | 1181×684×1127 | 466 |
| 6CTA8.3-M188 | 138 | 188 | 2328 | 1405×768×1179 | 733 |
| 6CTA8.3-M205 | 151 | 205 | 2328 | 1405×768×1179 | 733 |
| 6CTA8.3-M220 | 164 | 220 | 1800 | 1405×768×1179 | 733 |
| B5.9CMII122 | 90 | 122 | 1800 | Please contact the factory | |
| B5.9CMII150 | 110 | 150 | 2200 | Please contact the factory | |
| B5.9CMII163 | 120 | 163 | 1800 | Please contact the factory | |
| B5.9CMII190 | 140 | 190 | 2200 | Please contact the factory | |
| B5.9CMII205 | 151 | 205 | 2200 | Please contact the factory | |
| L8.9CMII223 | 164 | 223 | 1800 | Please contact the factory | |
| L8.9CMII238 | 175 | 238 | 2200 | Please contact the factory | |
| L8.9CMII313 | 230 | 313 | 2200 | Please contact the factory |
Note: The external dimensions and weight may vary depending on the configuration
